Atkore’s MC Glide Luminary Lite interlocked aluminum armor is designed for LED dimming in commercial construction projects. The low-profile interlocked armor design reduces worker fatigue, and it has an aluminum interlocked armor wrapped around a variety of bundle combinations consisting of power conductor and jacketed control conductor pairs.

Alpha Wire’s 9102 300V coaxial cable has a 10X cable diameter bend radius and a maximum pull tension of 15.4 lbs. It has a 20 (SOLID) AWG BCW conductor and is rated for temperatures from 14°F to 257°F.

Paige PumpWire’s P7371-SP 5,000V electrical cable is an armored flat, submersible pump cable with EPDM insulation. It has a 2/0 AWG gauge and is shielded 3C. It can operate in temperatures from –60°F to 250°F and withstand voltages of 11.5 kV AC and 35 kV DC.

Atkore’s HCF-90 interlocked galvanized steel armor Type AC cable is designed for patient care areas. The 600V cables with THHN conductors have two paths to ground. The outer metal jacket, in combination with a 16 AWG, serves as one equipment grounding means, while the second is an additional full-size green copper ground.

Cerrowire’s fire alarm/NPLFR MC cable has two-, three- or four-circuit THHN/THWN conductors and a green insulated ground. An interlocked aluminum armor is applied over the entire construction.

Atkore’s cable-in-conduit is HDPE conduit tailored to specific project specs with preinstalled cables. It streamlines power and communications projects, boosting efficiency and ensuring maximum cable protection. It consists of smooth, solid-wall, continuous-length HDPE conduit with preinstalled cable components.

American Wire Group’s type UF-B copper underground feeder is 600V and designed for direct burial, for use in dwellings not exceeding three floors above grade, as underground feeder to outdoor lighting or an apparatus or as general branch circuit wiring. It is made of bare annealed copper per ASTM B-3 or stranded conductors per ASTM B-8. It has color-coded PVC insulation with a nylon jacket and type THHN inners rated for 194ºF.

Atkore’s MC Glide Tuff interlocked lightweight galvanized steel armor Type MC cable has a lightweight, high-strength blue galvanized-steel interlocked armor. It consists of THHN/THWN-rated conductors twisted and wrapped with polypropylene assembly tape, and it comes with an insulated green EGC.

PureNet’s 550 MHz FTP cable consists of four balanced 23 AWG copper pairs around a flame-retardant cross-web. The core is wrapped with a polyester-film-backed aluminum foil with a drain wire applied longitudinally. The cable is jacketed with an appropriate flexible PVC jacket for either plenum or riser applications.

Southwire’s 600V copper service entrance cable is used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard. It may be used in all applications where Type SE cable is permitted. SER may be used in wet or dry locations.

Cerrowire’s SJOOW copper cable may be used for wiring portable tools, appliances, equipment, small motors and other machinery. It is flexible with good tensile strength, elongation and aging characteristics when installed as specified by the NEC and other applicable standards. It can be used in wet or dry locations.

American Wire Group’s AA-8000 Type SE, style R aluminum cable can be used as an aboveground service entrance cable, as a panel feeder and in branch circuits. It is rated at 600V and can be used in wet and dry locations.
The jacket is sunlight resistant and flame retardant.

Cerrowire’s lighting metal clad cable has two-, three- or four-circuit THHN/THWN-2 conductors, a green insulated equipment grounding conductor and a signal and/or control assembly comprising two 16 AWG TFN/TFFN conductors with an outer PVC jacket. An interlocked aluminum armor is applied over the entire construction.

FEI Electric’s Type flat MN-B cable has kraft paper wrapping over the grounding conductor. The core jacket is made of nylon. The PVC jacket is flame-retardant and is suitable for operation at 600V in all installations as designated in the National Electrical Code.

American Wire Group’s XHHW-2 low-friction power cable can be used in construction, conduit or recognized raceways for services, feeders and branch circuit wiring in wet or dry locations. It can be used in temperatures up to 194°F. It is designed to be installed without pulling lubricant.

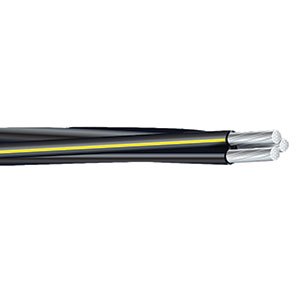

Cerrowire’s 600V phase-to-phase triplex service drop aluminum service or secondary cable may be used for service drop (pole-to-service entrance) or secondary cable (pole-to-pole). Two conductors insulated with black, low-density polyethylene or cross-linked polyethylene (ANSI/ICEA S-76-474) are twisted around the bare neutral conductor.

Southwire’s MilSpec COAX cable can be used for mobile phones, Wi-Fi, satellite antennas, terrestrial microwaves and medical, military and air traffic control applications. It features 95% bare copper braid shielding.

Ericson’s 4123-50 cable reel is rated NEMA 4 for indoor and outdoor environments. An adjustable ball stop and safety chain hole for overhead mounting are included. It is made of a heavy all-steel construction and a durable yellow powder-coated finish.

Cerrowire’s SOOW copper cable can be used in industrial equipment, heavy tools, battery chargers, portable lights, welding leads, marine dockside power and more. It can be used in wet or dry locations and has EPDM rubber that is resistant to heat, moisture, ozone, sunlight, flame and oil.

AutomationDirect’s Lutze Superflex control cable is designed for short to medium-length articulated drag chain installations requiring moderate to high performance. The high-glide TPE insulation and PVC outer jacket is resistant to sunlight, oil and moisture penetration and makes it suitable for indoor wet and dry applications or outdoor installations.

Southwire’s multiconductor riser shielded cable is designed for commercial audio, security, public address, intercom, alarm and access control circuits and power-limited controls. It is made of bare copper.

Cerrowire’s Lighting/PCS MC cable comes with two-, three- or four-circuit THHN/THWN-2 conductors and a green insulated equipment grounding conductor. An interlocked aluminum armor is applied over the entire construction.

Copperweld’s NM-B cable can be used overhead to illuminate dark construction space and is NEC-compliant per Article 590 for temporary installations. It discourages theft at work sites as it offers thieves only a fraction of the scrap value of single-metal copper NM-B cable.

Atkore’s HCF-90 interlocked galvanized steel armor Type AC cable is designed to be used in healthcare facilities. It is offered in 12 or 10 AWG THHN in 2, 3, or 4 conductors. The 600V cable with THHN conductors has
two paths to ground.

Corning’s DualDrop cable is designed for outdoor and indoor environments. The design features a fully waterblocked and UV-resistant drop cable inside a rugged outside plant. It is suitable for aerial, facade, direct buried and duct installations.

Fiber Instrument Sales’ TLC 48 fiber SMF28 indoor/outdoor fiber optic cable features water blocking aramid yarn strength members. The thick, UV-resistant black jacket is available in riser and plenum ratings. It is available with or without aluminum interlocking armor.

Cerrowire’s service entrance cable may be used as service entrance conductors, feeders and branch circuits where SE cables are permitted. It is rated for use up to 194°F in wet or dry locations. It has a gray, sunlight-resistant PVC jacket over the complete assembly.

Southwire’s low-voltage dimming or luminaire cable is plenum-rated. It is designed for dimming, luminaire, commercial audio and general security and sound applications. It is made of stranded bare copper and is twisted and jacketed.

Corning’s gel-free, triple-jacket, double-armored cable is designed for direct-buried installations. The loose tube design provides stable performance over a wide temperature range and protection against rodents, UV radiation, fungus, abrasions and other environmental factors.

Southwire’s multiconductor low-voltage unshielded cable can be used for remote control, signaling and power-limited circuits in security, sound and audio, speaker cable, alarm and access control applications. It is available in 500- or 1,000-ft. packages.

Corning’s Altos all-dielectric gel-free cable is designed for outdoor and limited indoor use for backbones in lashed aerial and duct installations. The cable’s construction requires no bonding or grounding, and it is built with a medium-density polyethylene jacket that is durable and easy to strip.

Southwire’s signal speaker cable enables users to interconnect amplifiers and speakers for high-end audio transmission stereo systems. It is in-wall-rated and made of stranded bare copper. It is UL listed for use in NEC power-limited circuits, except those routed in risers or plenums.

Atkore’s MC Luminaire Quik Type MC-PCs cable combines power and control circuits under one armor. It is designed for LED and fluorescent dimming systems. It can be used in daylight-harvesting applications to wire multiple zone rooms that use building management systems to automatically dim or raise lighting at certain times.

Cerrowire’s Class 2 power-limited cable is for use in thermostat control applications, bell and alarm systems. It is sunlight-resistant and consists of solid bare copper conductors with PVC insulation. It is available 2-, 3-, 5- and 7-conductor constructions.

Southwire’s low-voltage landscape cable is designed for outdoor accent lighting and security and landscape lighting. It is sunlight-resistant and suitable for direct burial. It operates in temperatures between –4°F and 140°F.

Southwire’s in-wall rated, stranded bare copper signal speaker cable is designed for interconnecting amplifiers and speakers for high-end audio transmission in pro audio and stereo systems. It is listed for use in NEC powerlimited circuits (except those routed in risers or plenums).

Copperweld’s MC cable is an alternative to pipe and wire systems, especially when installing in commercial buildings and places of large public assembly. The cable handles power, lighting, control and signal circuits, and it is designed for limited space.

Cerrowire’s healthcare MC cable comes with two-, three- or four-circuit THHN/THWN conductors and a green insulated ground. In addition, it has a bare aluminum grounding/bonding conductor that is cabled on the outside of the separator tape, which allows it to be in constant contact with the armor and serve as a redundant grounding path.

Southwire’s Telco Flex telecom power cable is designed for use in central office, CATV head end, data center and cell tower applications. It is a limited smoke, non-halogenated power cable insulated with TelcoHyde.

Hubbell Premise Wiring’s HFCD14 series H plenum cable is designed for indoor and outdoor use. It features an E-Z strip buffer for contractor-friendly termination. The compact cable diameter reduces pathway congestion.

Cerrowire’s low-voltage underground landscape cable is designed for landscape, security and outdoor accent lighting applications not exceeding 150V. It is sunlight- and UV-resistant and suitable for direct burial and use at temperatures between –4°F and 140°F.

OCC’s B-series breakout low-smoke and zero-halogen cable is suitable for light-duty applications. It is flame-retardant and UV-, fungus- and moisture-resistant. It can be used indoors or outdoors, and it operates between –40°F and 158°F.

Leviton’s FLX-1 advanced polymer technology is available on select Berk-Tek plenum Cat 6A and Cat 6 cables. The technology is built into the cable jacket and improves the cable’s flexibility so it is easier to bend and less likely to kink. It eliminates cable memory for smoother pulls and reduces visible stress marks on the cable jacket.

Cerrowire’s submersible pup cable can be used within a well casing to supply current to a submersible pump where the cable is not subject to repetitive handling required by frequent pump unit service. The maximum operating temperature is 167°F not exceeding 600V.

Southwire’s Class 2 limited-power cable consists of insulated conductors with an overall extruded jacket. It is designed for general-purpose low-voltage, power-limited systems and indoor use. It operates from –20°F to 75°F. It is available in 1,000-ft. or 500-ft. packages, reels or pull-boxes

Cablcon’s RG Flex DC power 600V cable has a Class I annealed tinned copper flexible stranded conductor. It has low-smoke, lead-free and silicone-free nonhalogenated insulation. It is designed for use in all telecommunications facilities including remote terminal applications.
