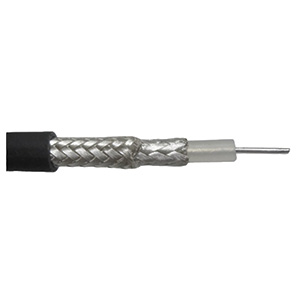

Southwire’s COAX Cable
Southwire’s MilSpec COAX cable can be used for mobile phones, Wi-Fi, satellite antennas, terrestrial microwaves and medical, military and air traffic control applications. It features 95% bare copper braid shielding.
- Cable
- Integrated Systems
Related Products
-
Alpha Wire’s Coaxial Cable
- Cable
- Coaxial Cable
- Integrated Systems
Alpha Wire’s 9102 300V coaxial cable has a 10X cable diameter bend radius and a maximum pull tension of 15.4 lbs. It has a 20 (SOLID) AWG BCW conductor and is rated for temperatures from 14°F to 257°F.
-
Paige PumpWire’s Electrical Cable
- Cable
- Integrated Systems
Paige PumpWire’s P7371-SP 5,000V electrical cable is an armored flat, submersible pump cable with EPDM insulation. It has a 2/0 AWG gauge and is shielded 3C. It can operate in temperatures from –60°F to 250°F and withstand voltages of 11.5 kV AC and 35 kV DC.
-
Cerrowire’s Cable
- Cable
- Fire Alarm Cable
- Integrated Systems
Cerrowire’s fire alarm/NPLFR MC cable has two-, three- or four-circuit THHN/THWN conductors and a green insulated ground. An interlocked aluminum armor is applied over the entire construction.
-
American Wire Group’s Underground Feeder Cable
- Cable
- Integrated Systems
American Wire Group’s type UF-B copper underground feeder is 600V and designed for direct burial, for use in dwellings not exceeding three floors above grade, as underground feeder to outdoor lighting or an apparatus or as general branch circuit wiring. It is made of bare annealed copper per ASTM B-3 or stranded conductors per ASTM B-8. It has color-coded PVC insulation with a nylon jacket and type THHN inners rated for 194ºF.
-
American Wire Group’s Type SE, Style R Aluminum Cable
- Cable
- Integrated Systems
American Wire Group’s AA-8000 Type SE, style R aluminum cable can be used as an aboveground service entrance cable, as a panel feeder and in branch circuits. It is rated at 600V and can be used in wet and dry locations.
The jacket is sunlight resistant and flame retardant. -
American Wire Group’s Power Cable
- Cable
- Integrated Systems
American Wire Group’s XHHW-2 low-friction power cable can be used in construction, conduit or recognized raceways for services, feeders and branch circuit wiring in wet or dry locations. It can be used in temperatures up to 194°F. It is designed to be installed without pulling lubricant.
-
Southwire’s Multiconductor Riser Shielded Cable
- Cable
- Integrated Systems
Southwire’s multiconductor riser shielded cable is designed for commercial audio, security, public address, intercom, alarm and access control circuits and power-limited controls. It is made of bare copper.
-
Corning’s Cable
- Cable
- Integrated Systems
Corning’s DualDrop cable is designed for outdoor and indoor environments. The design features a fully waterblocked and UV-resistant drop cable inside a rugged outside plant. It is suitable for aerial, facade, direct buried and duct installations.
-
Southwire’s Cable
- Cable
- Integrated Systems
Southwire’s low-voltage dimming or luminaire cable is plenum-rated. It is designed for dimming, luminaire, commercial audio and general security and sound applications. It is made of stranded bare copper and is twisted and jacketed.
-
Corning’s Cable
- Cable
- Integrated Systems
Corning’s gel-free, triple-jacket, double-armored cable is designed for direct-buried installations. The loose tube design provides stable performance over a wide temperature range and protection against rodents, UV radiation, fungus, abrasions and other environmental factors.
-
Southwire's Speaker Cable
- Cable
- Integrated Systems
Southwire’s signal speaker cable enables users to interconnect amplifiers and speakers for high-end audio transmission stereo systems. It is in-wall-rated and made of stranded bare copper. It is UL listed for use in NEC power-limited circuits, except those routed in risers or plenums.
