Cerrowire’s thermoplastic-insulated, 600V THHN/THWN-2 copper wire has a nylon covering and features SLiPWire Technology for easy pulling in conduit. It can be used in temperatures up to 194°F. It can be used in residential, commercial and industrial applications and in wet and dry locations in accordance with the National Electrical Code.

Copperweld’s 150V premium bell wire is a Class 2 power-limited circuit cable. It’s made of solid copper-clad aluminum 10% and annealed conductors with 6 mils of PVC insulation. The conductors are jacketed with 15 mils of sunlight-resistant, riser-rated PVC. It’s operating temperature is rated at 140°F.

Cerrowire’s TFFN copper wire may be used as fixture wire, machine tool wire or appliance wiring material. When used as Type TFFN, the conductor is rated for use up to 194°F. When used as Type MTW, it is rated for use up to 194°F in dry locations and up to 140°F in wet locations or when exposed to oil or coolant. When used as AWM, the conductor is rated for use up to 221°F in dry locations.

FEI Electric’s 600V wire is used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications. It has a PVC with a nylon jacket. It is made of solid or stranded soft-annealed uncoated copper. It is suitable for dry locations at temperatures not to exceed 194°F.

Cerrowire’s thermostat wire is a Class 2 power-limited cable for use in thermostat controls applications and bell and alarm systems. It is not to exceed 150V when installed. It features 18 AWG solid bare copper conductors with PVC insulation. It comes in 2-, 3-, 5- and 7-conductor constructions with a brown PVC jacket.

Alpha Wire’s Premium 3051 hookup wire is suitable for a temperature range of –40°F to 221°F. The conductor is made of 22 AWG tinned copper at a diameter of 0.03 in. The cable has a maximum pull tension of 5½ lbs.

Cerrowire’s sound and security wire can be used as security system cable or for audio and intercom system applications. It is flame-retardant and shielded to reduce signal interference.

Cerrowire’s aluminum triplex secondary URD wire may be directly buried or installed in ducts in electrical distribution circuits not exceeding 600V phase-to-phase. It can be used in wet or dry locations at conductor temperatures not exceeding 194°F for normal operation, 266°F for emergency overloads and 482°F under short-circuit conditions.

Cerrowire’s SOOW copper wire can be used for extra-hard usage on industrial equipment, heavy tools, battery chargers, portable lights, welding leads and more. It can be used in wet or dry locations. It is made with heat-, moisture-, ozone-, sunlight-, flame- and oil-resistant EPDM rubber.

Cerrowire’s copper primary wire is suitable as a low-voltage primary wire for use at nominal system voltages 60V or less. The PVC insulation provides physical protection in vehicle wiring environments with limited exposure to fluids and the kind of mechanical abuse seen during the operation
of cars, boats and more.

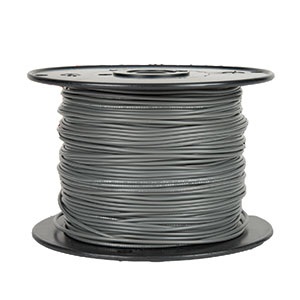

AutomationDirect’s 300V Atlas Type AWM (appliance wire material) wire is commonly used for appliance wiring, control cabinets and machine tool applications. It consists of a tinned copper single conductor covered with a colored polyvinyl chloride outer jacket. It is available in sizes ranging from 26 AWG to 16 AWG.

Cerrowire’s twisted bell wire is commonly used for low-voltage battery transformer circuits, including connecting call-back, buzzer systems, door chimes and furnace controls. Both solid copper conductors are insulated with heat- and moisture-resistant PVC.

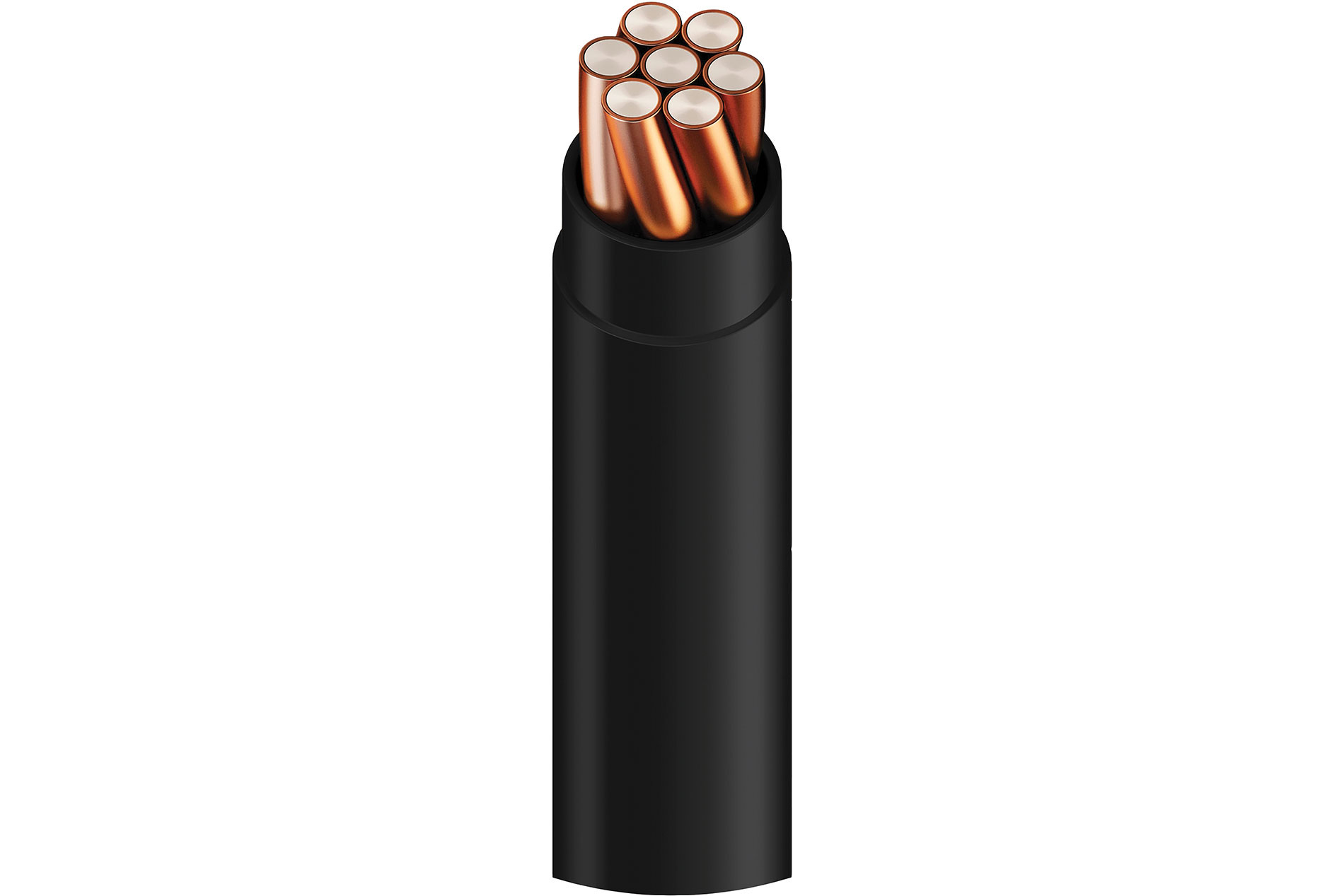

Copperweld’s grounding electrode conductor is made with a copper-steel bi-metal. All of the copper is located at the surface and periphery of the wire, which is designed to carry most of the fault current during short-circuit conditions. It discourages theft by offering a fraction of the scrap value of a copper GEC, and is cut- and break-resistant.

Cerrowire’s 18 AWG multiconductor copper wire may be used as sprinkler system wire for connecting field and central controls up to 30V. It is available with 4, 5, 7 or 10 conductors and in 50-, 100- and 500-ft. lengths. It is sunlight-resistant and suitable for underground applications.

Orbit Industries’ 8-in. long 12 AWG wire tail is available in stranded and solid conductor types. It includes a No. 10 flanged fork on one end for clamping to device terminal screws, and 5/8-in. exposed conductor on the other end. Precut wire tails greatly reduce the need to cut and strip device conductors from reels of electrical wire while reducing scrap piles.

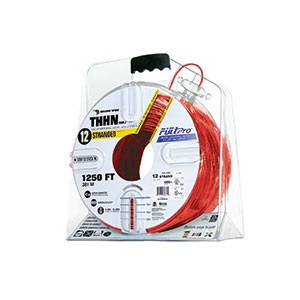

Encore Wire’s PullPro wire features a centered, form-fitting grip and weight distribution for balanced handling. The shrink-wrapped inner coil allows wire to be pulled with or without the case. The cases fit together when pulling multiple conductors. All sizes and lengths weigh less than 30 lbs. for increased safety.

Encore Wire’s XHHW-2 / RW90 is permitted for 600– 1,000V applications. It is intended for general purpose applications used in raceways, underground in raceways for service, feeders and branch-circuit wiring. It is suitable for wet, damp and dry locations, while being sunlight-resistant in all colors. Pulling heads are available on sizes 8 AWG and larger.
