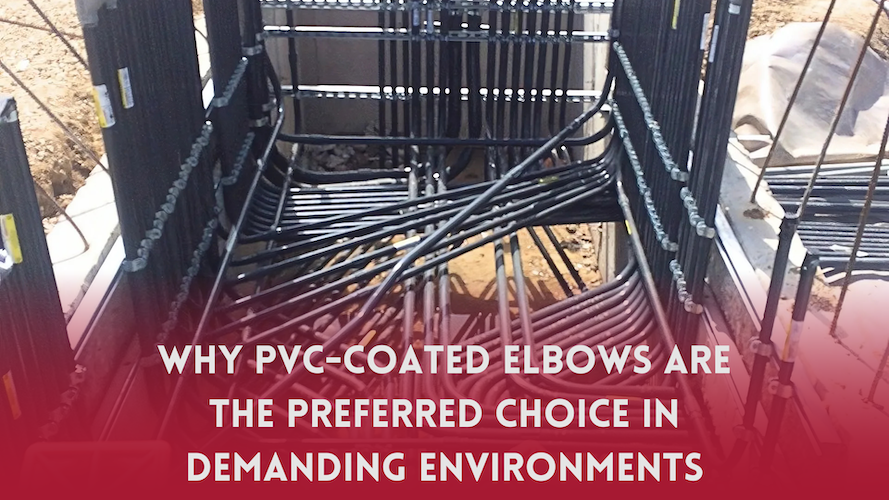

Introduction

Conduit elbows serve several critical purposes in electrical installations. Elbows allow electrical conduits to change direction, ensuring the wiring can follow the required path, and in addition to mechanical protection to wires, they prevent excessive bending of wires, which can damage insulation and lead to electrical faults.

In environments where function, durability and corrosion resistance are required, PVC-coated elbows are the preferred choice to ensure long-term performance. Typical applications for PVC-coated elbows include industrial facilities, power plants, chemical processing plants, water-wastewater facilities and commercial buildings. In these applications, exposed conduit often runs in high-traffic areas, parking garages, outdoor applications, duct banks and direct burial applications.

When selecting material in these harsh environments, PVC-coated rigid elbows should be the preferred choice compared to nonmetallic alternatives like PVC or fiberglass elbows.

Material composition, durability and mechanical strength

PVC-coated rigid elbows:

PVC-coated elbows are manufactured from sturdy steel or lightweight aluminum with an added layer of polyvinyl chloride (PVC) coating, combining the structural integrity of the underlying metal with the protective benefits of PVC. This dual composition makes PVC-coated elbows especially suited for harsh industrial settings, where impact resistance and environmental protection are essential, enhancing the elbow’s lifespan in such environments.

Unlike non-metallic elbows, PVC-coated rigid elbows can withstand substantial stress and pressure without significant deformation or breakage, making them ideal for heavy-duty applications. This property is particularly important for underground applications where infrastructure may face external challenges, such as accidental damage from heavy equipment. PVC-coated metal conduit systems have demonstrated superior durability in such scenarios, often surviving impacts that would compromise nonmetallic alternatives. In fact, the Midstream sector returned to using PVC-coated conduit after observing its ability to endure backhoe strikes without system failure, highlighting its resilience in real-world conditions.

The inherent flexibility of metal allows it to bend rather than break under stress, an essential advantage in environments where the earth shifts with great force. Robust conduit wall thickness provides excellent support for electrical cables within the conduit. For installations where weight is a consideration, PVC-coated aluminum elbows offer a lighter alternative without compromising on corrosion resistance and durability.

Corrosion resistance and environmental factors

Corrosion resistance of PVC-coated elbows:

The PVC coating on rigid elbows offers robust protection against corrosion, moisture and a broad spectrum of chemicals, making it exceptionally suited for harsh and corrosive environments. This resistance to acidic and alkaline substances significantly extends the lifespan of PVC-coated elbows, particularly in outdoor and industrial settings where exposure to chemicals or saltwater is common.

PVC-coated elbows utilize a specially formulated gray plastisol that offers long-term UV resistance and prevents deterioration when exposed to elements in the environment. PVC-coated elbows minimize the risk of discoloration, increased brittleness and “fiber blooms” common with nonmetallic elbows.

Precision bends

PVC-coated rigid elbows provide well-defined bends with consistent radii, ensuring accurate cable routing.

PVC-coated rigid standard bend angles include 11¼°, 22½°, 30°, 45° and 90°, with radii options of 12, 24, 36 and 48 inches. These elbows are available in sizes from ½ inch to 6 inches in diameter. Custom radii and angles can also be manufactured to meet specific project needs.

When field bending is necessary, PVC-coated conduit can be bent using conventional equipment. However, to accommodate the PVC coating, shoes designed for bending PVC-coated conduit should be utilized. If shoes designed for PVC-coated are not available, it's recommended to use a shoe for galvanized conduit in the next-larger size shoe.

Fiberglass elbows, due to their manufacturing process, are prone to losing their bend radius over time. The fibers within the material exert tension against the resin, pulling the elbow back toward its original straight shape. This issue becomes more pronounced with prolonged sun exposure and poses challenges for maintaining the design consistency required in prefabricated installations.

PVC-coated rigid elbows lower the risk of conduit damage, reduced internal diameter and the need for specialty heating equipment that commonly results from field bending traditional nonmetallic elbows. They are designed with flexibility in mind, making field bending simpler and more accessible compared to nonmetallic alternatives. Additionally, the ease of bending PVC-coated conduit reduces installation time and the need for specialized tools, making it ideal for quick and adaptable field adjustments.

Grounding

In electrical raceway systems, PVC-coated elbows provide a path to ground and qualify as “conductors” that can carry current in the event of a ground fault, providing personnel safety protection. System grounding also reduces the risk of static electricity, which can easily build up in nonmetallic PVC or fiberglass raceways. By contrast, nonmetallic systems such as fiberglass lack this inherent grounding capability, potentially creating safety challenges. For example, an open wire seeking an alternate path to ground increases the likelihood of a hazardous discharge, which could have dangerous health and safety repercussions.

Ease of installation and maintenance

PVC-coated elbows simplify installation and maintenance. Threaded connections are made quickly and easily with common tools. There is no need to calculate how much joint adhesive or glue is required, no mixing and no curing time associated with nonthreaded, nonmetallic raceways.

Nonmetallic conduit can experience burn-through issues during wire pulls due to high friction and poor heat dissipation, especially with large conductors or long pulls. By contrast, the smoother surface and thermal resistance of PVC-coated conduits reduce these risks, ensuring safer and more reliable installations.

The system solution approach of PVC coated products helps ensure the integrity of the electrical system even in the most demanding applications. A complete complementary product offering coated fittings, hubs, reducing bushings and support products ensures alignment with project needs.

Innovative products simplify and improve installations. PVC-coated sealing locknuts can be used with PVC-coated rigid elbows when transitioning from belowgrade coated rigid conduit to above grade Schedule 40 or 80 PVC conduit and eliminates the risk of exposed threads where corrosion can occur. PVC-coated SpeedCouple facilitates space optimization by allowing installation without having to turn the conduit or elbow, helping to get the job done faster, easier and safer.

As a best practice to enhance the watertightness of PVC-coated systems, applying touch-up compound to couplings is recommended. This step enhances the seal, reducing the risk of moisture ingress and ensuring system integrity. For underground applications, this practice helps create a sealed system that offers superior performance compared to alternatives.

The durable PVC coating adds a protective layer that resists minor abrasions, which not only enhances durability, but also reduces the need for ongoing maintenance, making PVC-coated elbows a practical choice for long-term installations.

Regulatory compliance and safety standards

Most PVC-coated elbows are UL listed, but it’s essential to consider the compliance and safety standards of the entire PVC-coated electrical raceway system to ensure optimal protection and performance in demanding environments.

Using a PVC-coated raceway system, such as Plasti-Bond, offers distinct advantages in harsh and corrosive environments due to its compliance with stringent regulatory standards. Plasti-Bond’s PVC-coated conduit meets UL6 for the safety of rigid metal conduit (UL 6A for aluminum), NEMA RN-1 for continuous PVC coatings and ANSI C80.1 for manufacturing consistency, ensuring robust construction and reliable performance. Additionally, with ETL PVC-001 certification, the system is independently tested for long-term adhesion performance, further enhancing its reliability across demanding applications. PVC-coated fittings meet UL514B requirements.

As a complete system, Plasti-Bond’s PVC-coated conduit bodies meet IEC IP69 and UL Type 4X ratings, protecting against dust and water ingress, which is essential for washdown and wet environments. Furthermore, UL 1203 certification ensures that hazardous location fittings are suitable for explosion-proof and dust-ignition-proof installations in hazardous locations after coating, making it an ideal choice for applications requiring the highest safety standards. By selecting a PVC-coated system that complies with safety and performance across the entire line, facilities achieve comprehensive, regulatory-compliant protection that extends the lifespan of electrical infrastructure and reduces maintenance needs, delivering a reliable and cost-effective solution for critical installations.

Life cycle cost analysis

While PVC-coated elbows may come with a slightly higher initial investment compared to other materials, they often deliver significant cost savings over time. The durable PVC coating provides excellent resistance to corrosion, moisture and harsh chemicals, which translates to reduced maintenance needs and a lower frequency of replacements. This long-lasting protection also helps facilities avoid costly compliance penalties, particularly in regulated environments where equipment must meet strict safety standards. Reduced maintenance and replacement frequency make PVC-coated elbows a practical choice for installations where durability is essential.

From a return on investment (ROI) perspective, PVC-coated elbows offer substantial value by extending service life and minimizing the total cost of ownership. In challenging environments, the elbows withstand harsh conditions that would degrade other materials more quickly, meaning fewer disruptions and lower replacement costs. This longevity, combined with lower ongoing expenses, enhances ROI and provides a more cost-effective solution for facilities focused on long-term performance and reliability.

Conclusion

PVC-coated elbows stand out as the preferred choice in industries where corrosion resistance, regulatory compliance and durability are essential. The PVC coating provides a strong barrier against corrosive elements, making these elbows highly suitable for harsh environments like industrial, marine, water treatment, chemical and direct burial applications. They are designed to meet stringent safety standards, ensuring compliance with key regulations, which helps facilities avoid potential fines and maintain safety requirements. Additionally, their robust construction and impact resistance mean reduced maintenance needs and a longer service life compared to alternative materials.

For organizations seeking long-term performance and reliability, PVC-coated elbows are the optimal solution. Their ability to withstand demanding conditions while minimizing ongoing costs makes them a smart investment, delivering consistent protection and peace of mind in even the toughest applications.
