In the realm of electrical work, the importance of having the right tools cannot be overstated. Among these, the hammer remains a fundamental, yet often overlooked, instrument of craftsmanship and demolition. This article
aims to delve deep into the world of hammers, providing electricians with knowledge to make informed decisions.
Balancing cost and quality is key; while expensive options offer high-end features, it might not always be necessary to spend several hundred dollars on a hammer. Conversely, low-end economical choices can often fall short in durability and efficiency.
Understanding hammer materials
Hammers are predominantly made from steel, aluminum or titanium, each offering distinct benefits. Steel hammers are known for their durability and heft, making them ideal for heavy-duty tasks. Aluminum hammers offer a lighter alternative, reducing user fatigue without compromising strength. Titanium hammers are on the higher end, providing strength comparable to steel but at half the weight. However, the fact that they cost a fortune in materials and manufacturing may make it difficult to spend the extra money, especially since titanium hammers can still crack if dropped or otherwise stressed improperly.

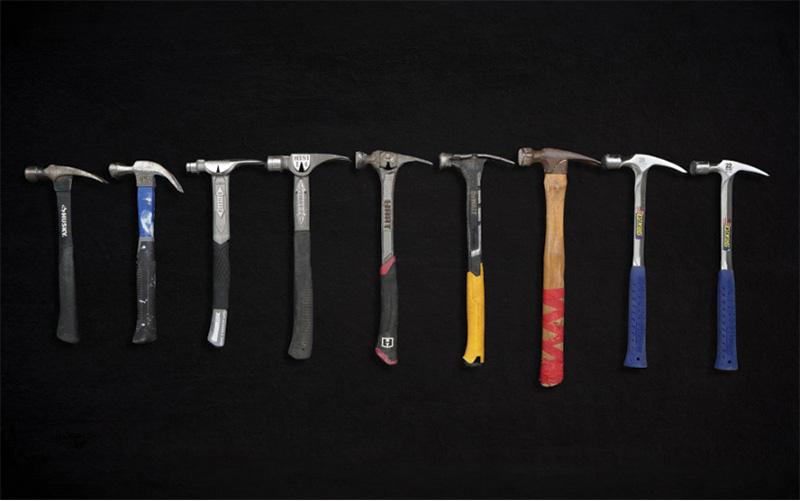

Hammers are predominantly made from steel, aluminum or titanium.
In terms of construction, one-piece hammers offer increased durability and a solid feel, while multipiece designs may provide additional shock absorption or a cheaper manufacturing cost. Two-piece hammers with wooden handles and steel heads are easily breakable and typically don’t come with a shock-absorbing grip. This can make using them rough on the hand and lead to the head breaking off when a user connects with one too many hard surfaces. If a user enjoys a heavy hammer, a single-piece steel design might be the way to go. Otherwise, an aluminum or titanium hammer of the same size may be the choice for those who prefer a more lightweight option.
Weight and balance
Weight is a critical factor in hammer selection. For electrical work, a hammer should be heavy enough to drive nails effectively, but not so heavy as to cause undue fatigue. A weight range of 20–24 ounces is common on many jobs sites. The sweet spot, however, depends on the user’s height, strength and hand size.
Balance is equally important. Determining where the fulcrum of the hammer is, or where the balance is when the tool is turned sideways, will tell you whether the hammer is overly top-heavy or has equal weight distribution throughout. A well-balanced hammer feels lighter and can be maneuvered more easily, increasing precision and reducing strain. However, a top-heavy hammer is better for driving power, if swung correctly.
Hammer design and length
The hammer’s length affects leverage and swing. Shorter hammers, typically 10–12 inches long, offer greater control and are suitable for lighter tasks in confined spaces. Longer hammers, usually between 13 and 18 inches, provide increased leverage and power, making them ideal for tasks requiring more force, such as driving larger nails or demolition work in renovation projects.
The ergonomic design of a hammer also plays a significant role. A well-designed hammer should offer balanced weight distribution between the handle and the head, ensuring each swing is efficient and reduces the effort required to complete the task. This balance is critical in minimizing the risk of repetitive strain injuries due to consistent use over the long term. Features such as contoured grips and anti-vibration technology also contribute to overall comfort and efficiency, making the hammer an extension of the electrician’s hand rather than an inefficient or cumbersome tool.
Handle styles and materials
The hammer’s handle is as important as its head. Fiberglass handles are known for durability and excellent shock absorption, which reduces the stress on the electrician’s hand and arm. Metal handles, often made of steel, offer durability and a solid feel, but they can be heavy and may not absorb shock as well. Rubber handles provide a comfortable and nonslip grip, which is crucial for safety and precision in electrical work—some brands even allow their hand grips to be changed out for personalization.

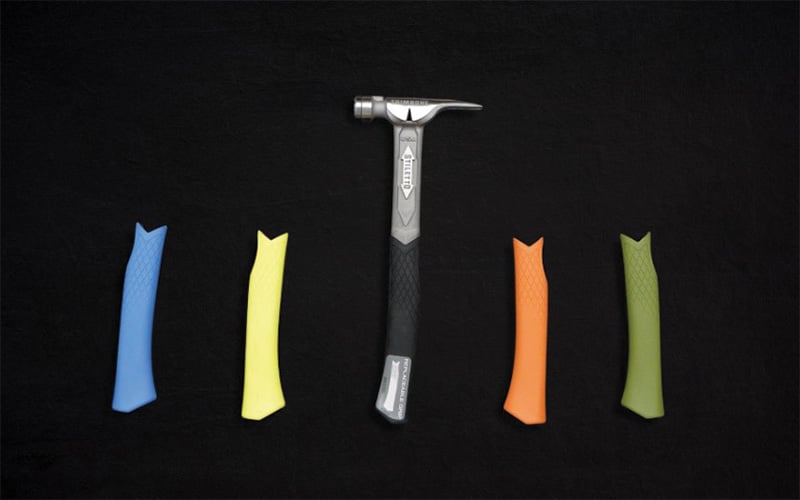

Some brands allow their hand grips to be changed out for an element of personalization.
Wooden handles, while traditional and aesthetically pleasing, often lack the durability and shock-absorbing qualities of their fiberglass and metal counterparts. They can be prone to splintering and breaking under the high-impact conditions of electrical work. However, some electricians prefer the classic feel and lightness of wooden handles, especially for less intensive tasks.
The choice of handle material can also affect the tool’s overall balance and weight distribution, and by extension the user’s comfort during prolonged use. Therefore, when selecting a hammer for electrical work, the handle’s material should be considered in tandem with the type of work and personal preference for handle feel and weight.
Claw design: Straight versus curved
The design of the hammer’s claw is pivotal in its utility for electrical work. Straight claws are typically more aligned with electricians’ needs. Their shape allows for better access in cramped spaces, such as between wires or behind panels, making them invaluable for tasks such as prying open enclosures or straightening bent metal conduits.
Curved claws, commonly seen in carpentry, focus on ease of nail removal. While useful in general construction, their design is not as conducive to the unique challenges of electrical work. They may struggle in tight spots where electricians often find themselves. However, some electricians might find them useful in specific scenarios, such as during the demolition phase of a renovation project where nail removal is frequent.
Hammer face: size and texture
The size and texture of the hammer’s face have a direct affect on its functionality. A larger face, typically around 1–1.5 inches in diameter, is more forgiving when driving nails into stud work or utility poles, reducing the chance of missed strikes. A smaller face, while requiring more precision, allows for more controlled and accurate hits and less likelihood of damaging the material being hammered into.
Also consider the texture of the hammer face. A milled or waffled face grips nail heads better, reducing the likelihood of the hammer slipping and causing injury or damage to something nearby being hit. On the other hand, a smooth face is less likely to mar or damage delicate surfaces such as wire insulation, and is preferable for finish work where aesthetics are important.
Modern hammers are equipped with advanced features that enhance functionality and safety. Magnetic nail holders are a significant advancement, allowing electricians to set a nail with one hand and hammer with the other, which is particularly useful when working at height or in awkward positions. Side nail pullers are another innovative feature, offering the ability to remove nails from tight spots without damaging surrounding materials.
High-end hammers incorporate replaceable faces and grips, which extend the hammer’s life span and allow for customization to fit individual preferences and tasks. These features can be especially beneficial for electricians who require a versatile tool adaptable to various tasks, from rough framing to delicate finish work.
The cost-effectiveness dilemma
The decision of whether to invest in a high-quality hammer should be based on a cost-benefit analysis that considers the specific needs of electrical work. While higher-priced hammers often offer better materials, ergonomics and advanced features, they may not always be necessary for every electrician’s needs. For example, a beginner or occasional user may not require the advanced features of a high-end model and can opt for a midrange hammer that still offers durability and ergonomic design.
Conversely, for a professional electrician who uses a hammer daily, investing in a higher-priced, high-quality model can be more cost-effective in the long run. Such hammers often are more durable, reducing the frequency of replacements, and their ergonomic features can minimize the risk of work-related injuries.
Ultimately, the choice of hammer should align with the electrician’s specific tasks, frequency of use and personal preference for handle material and hammer weight. A well-chosen hammer can be a valuable asset in an electrician’s toolkit, contributing to work efficiency and safety.
When selecting a hammer for electrical work, consider the weight, balance, handle material, claw design and face size. Prioritize ergonomics and durability over price, and choose features that will enhance efficiency and safety on the job. Regular maintenance, such as checking for loose heads or damaged handles, will ensure the longevity and reliability of this essential tool.
Selecting the right hammer is about investing in a tool that will be a daily companion in the varying world of electrical work. By considering personal needs and preferences, electricians can find a hammer that fits their budget and enhances work efficiency and safety.
Header image: The size and texture of the hammer’s face have a direct effect on its functionality.
All photos by dustin stelzer
About The Author
Stelzer is a master electrician from Austin, Texas. As the CEO of Electrician U, he’s dedicated to revolutionizing the trade industry through education, offering comprehensive courses, hands-on tutorials and insight. Under Dustin’s guidance, the platform aims to empower electricians with the knowledge and skills needed to excel in their craft. To learn more about Electrician U, visit ElectricianU.com.
