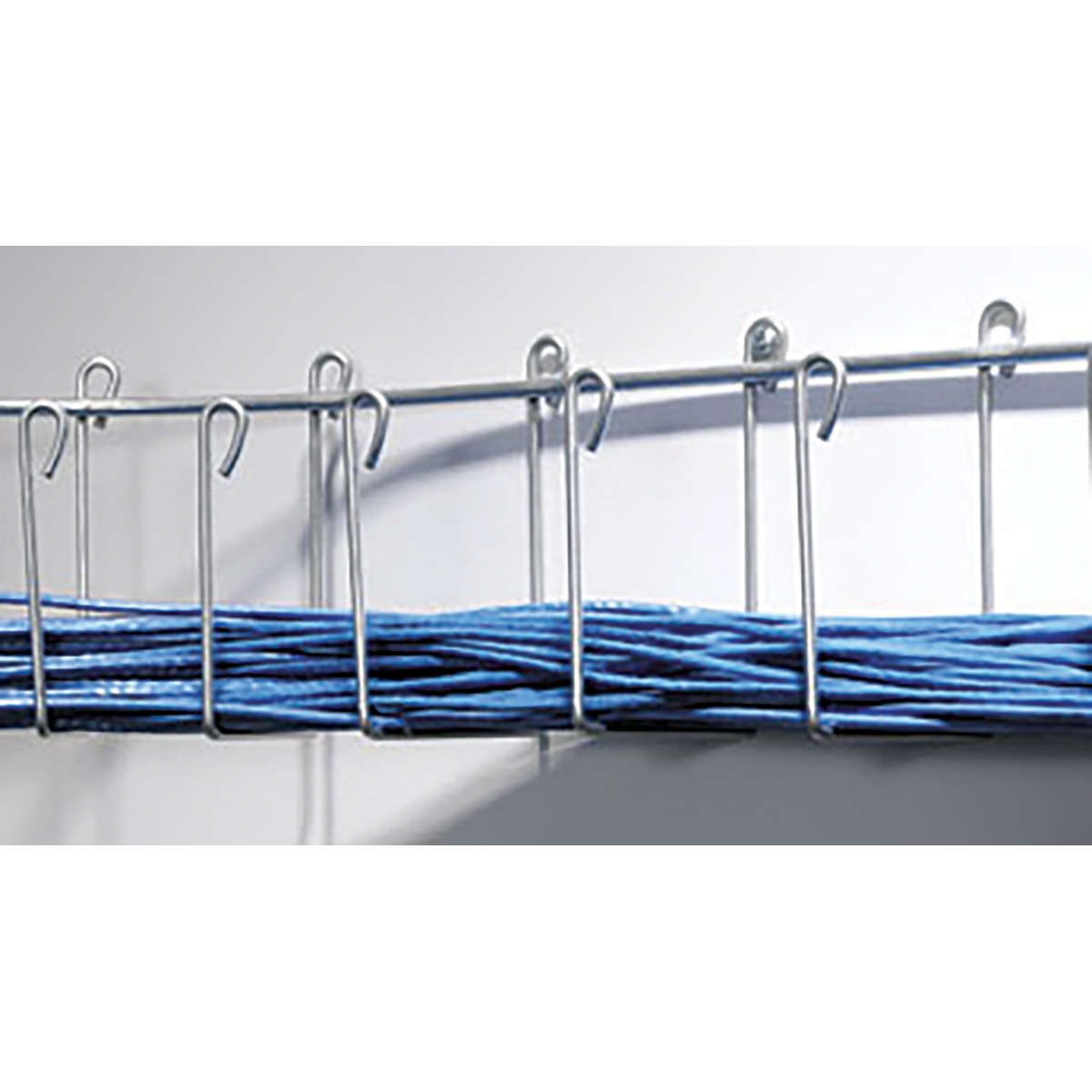

Wiremaid’s J-Tray provides support spacing and is used for small to medium size cable bundles. It eliminates cable sagging and bending. It can be attached to a wide variety of structures and is designed to alleviate damage and prohibit overbending and poor cable performance. It is available in lengths of 22 or 40 in.

Snake Tray’s Snake Max cable tray meets the demands of conveying power cables inside and outside the data center. It has snap-in cable managers, and the separators allow the cables to operate cooler for energy efficiency. It can accommodate cables from 350 to 1,250 kcmil.

Atkore’s I-Beam welded aluminum ladder tray is lightweight and resistant to corrosion. The rung design enables cables to be tied down or to exit the tray where necessary. The design promotes ventilation and prevents the accumulation of dust, debris and moisture.

Snake Tray’s 787 series Conveyor is a hand-bendable cable tray specifically for attachment to conveyor belt systems used in distribution centers and warehouses. The spine is made of 0.25-in. recycled steel, and it has a lobster-trap design for cable loading, changes and additions.

Chalfant GR-Magic cable tray is a self-connecting wire mesh tray solution. It is available in 1-, 2- and 4-in. side heights. Users can create bends, falls, rises and intersections with ease. The self-connecting ends enable installers to connect tray lengths in a single snap.

Lowell Manufacturing’s CL-12VT 12-in.-wide vertical-turn cable ladder can be used as either an inside or outside bend, attaching to a straight ladder to continue proper cable bend while changing elevation or direction. It conforms to minimum cable bend radius requirements.

Snake Tray’s new Snake Max cable tray for data centers and A.I. infrastructure features prefabricated turns, tees, intersections and vertical elevation components for quick installations. Cable separators enable the cables to operate cooler for more energy efficiency.

Chalfant’s BKRS walkable cable tray is manufactured from 12-gauge steel. The nonslip treaded covers are over ¼ in. thick and ensure workers have a solid footing. It is available in 4-in. side heights and widths from 4–24 in.

Legrand’s CabloBend cable tray is made of easy-to-bend flex wires, and there is no cutting required. It features vertical and horizontal angle adjustability to 90 degrees to fit any configuration. Rigidity clips are included to fasten sections together for added strength.

Atkore’s Eagle basket is made of steel wires creating a 2-in.-by-4-in. mesh cable basket to manage and route the growing number of cables necessary to keep an operation running. It can be formed in 90-degree radius bends.
