nVent’s continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications. There are external wall-mounting brackets for easy installation and an oil-resistant gasket. The seams are continuously welded and ground smooth.

Attabox’s Heartland series polycarbonate enclosure is applicable for heavy industrial conditions, but suitable for commercial, industrial and OEM design applications. It is rain- and watertight-rated for use in interior and exterior applications, and it has a corrosion-resistant polycarbonate housing for use in a variety of environments.

Snake Tray’s CM 708-SK-0622 recessed wall-mounted enclosure features a plexiglass window for storing wireless transmitters in dorm rooms, general office spaces and hospitality environments. It provides a secure 14-in.-wide-by-14-in.-high space for equipment up to 3 in. deep.

Snake Tray’s CM-708-SK-0330 basic ceiling mount- enclosure installs in 2-by-2-ft., 2-by-4 -ft. and 2-by-6-ft. drop ceilings. It has 6 RU of standard 19-in. passive rack-mountable space and is fitted with a horizontal cable slack manager. The lockable, secure door has a 50-lb.-plus capacity and can be customized. The cover opens with two built-in pneumatic cylinders.

ICC’s 28-in. plastic residential wiring enclosure is built to meet residential requirements for structured wiring and media outlets. It is reversible and the vented doors are included. The universal hole pattern accommodates most push-pin modules. The bezel frame covers rough drywall edges and has a 10-second tab assembly.

Snake Tray’s CM 708-78-10720-2.50 enclosure works within the confines of raised-floor office tiles. It features a built-in internal cable manager. The secure, locking, hinged cover allows for unimpeded working space. It is constructed from 16 GA galvanized steel and is available with standard knockouts. It accepts a variety of connectivity solutions.

Hubbell Wiring Device-Kellems’ inREACH plenum-rated, cord-reel enclosure can be mounted to a ceiling, wall or bench. It is temperature-tolerant and has a 75-lb. load capacity. The steel enclosure features a white powder-coat finish, incorporates a prepunched knockout hole and includes a 4-in.-square electrical box.

Snake Tray’s Resi box is a structured media enclosure that creates a distribution point for AV, voice and data applications while providing a consolidation point for wiring home runs from wall outlets. It is available in 14- and 28-in. and supports new and retrofit installations. It is manufactured from galvanized steel and has a powder-coated beveled screw.

STI’s EnviroArmour enclosure with A/C helps keep electronics operational in severe temperatures. It helps to guard sensitive devices against weather, vandalism, tampering and theft. A variety of sizes and options are available that also include air conditioning, air conditioning with heat, heat only, filter fans, drain vent and more.

Wiegmann’s double-door enclosure protects components in harsh or dirty environments. A removable center post provides access to components. It is designed for municipal and commercial facilities.

Cable Express’ fiber enclosure allows for easier access, installation and management of cable. It is designed so users can customize their infrastructures to meet organizational needs. The fiber enclosure features sliding trays that are redesigned and used in conjunction with molded plastic slides. For optimal fiber cable installation, cutouts are made to the front end of each tray for.

The Heartland series from The Enclosure Store & More is a series of corrosion-resistant polycarbonate enclosures designed for heavy industrial conditions. The polycarbonate resin has an F1-rating, having passed tests for UV exposure and water immersion. The enclosures are watertight and rated for interior and exterior applications. Latches and hinges do not penetrate the enclosures. They have removable lids; inserts; integrated padlock hasps; flush-fit side-mount swing panel; multidirectional mounting feet and DIN rail systems.

Attabox’s Commander industrial enclosure has a gasket that creates a complete environmental seal. It has rounded edges and virtually no pocket areas to trap dust or debris. It is available in fiberglass and polycarbonate. The all-polycarbonate model has blank covers and a choice of one- or two-hole pushbutton openings for both 22-mm and 30-mm hardware. The fiberglass model is available in two cover versions: a flush cover for unobstructed enclosure sides and a continuous cover gasket producing a watertight seal.

Flir Systems’ large-format, infrared inspection window is designed for wider viewing angles in challenging industrial settings. The window has advanced, impact-resistant polymer optics available in 6-, 12- and 24-in. widths and can be used with both visual and infrared cameras. Locking covers secure the viewing panes from impact, debris, dust and airborne pollutants.

Hyperline’s indoor, wall-mount fiber optic enclosure manages single fiber, ribbon and bundle fiber cables for indoor use. It features a cold-roll steel box, splicing unit, distribution unit and panel. FC, SC, ST and LC adapters can be installed.

Taymac’s MR420 recessed, outdoor wall nonmetallic, weatherproof receptacle cover is 2³/₄ in. deep for room for large plugs. The electrical box features a 21-in.³ capacity, two eccentric knockouts and four NM sheathed cable clamps. It can be stud or wall mounted on all common siding types and materials.

Weigmann’s Ultimate Mini-Max series quarter-turn style JIC enclosure is designed to house and protect electrical components in harsh, dirty environments. It has an FTC flange around the entire door opening to channel liquids away, and the quarter-turn latch keeps the door shut without exterior clips.

Arlington Industries’ nonmetallic, UV-rated enclosure box meets NEMA 3R requirements for outdoor use. It is designed to protect and secure power backups, security devices and other valuable equipment indoors or outside. It comes in four sizes, in gray or black—with or without a back plate, which allows access to mounting components after installation.

Snake Tray’s under-desk, passive optical network mounting enclosure can house most ONTs, and it provides space for the service loop and the auxiliary power unit.

Continental Control Systems’ WattNode panel box UL 508A NEMA 4 enclosure is available with a three-phase circuit breaker, a fuse block, or no circuit protection. It is suitable for indoor or outdoor use and is available with WattNode meters preinstalled.

Phoenix Contact’s ECS two-piece, sealed polycarbonate enclosure creates IP-66, IP-67 and NEMA 6 ratings with a latch or screw-locking method. It has integrated connection options with one or two M12 inserts and a cable gland option. A blank faceplate can be modified to accommodate any sealed connector that fits within the housing profile.


FiBox’s ARCA IEC polycarbonate enclosure is available in sizes up to 31 1/2 by 23 1/2 by 11 1/2 in. It is impact-resistant and is available in either horizontal or vertical orientations and in 24 by 20 in. and 24 by 24 in.


L-com’s 1HFA-series 120V AC industrial, weatherproof enclosure is constructed from molded, halogen-free, self-extinguishing, fiberglass-reinforced polyester and is designed for hot and cold environments. It features a built-in heating and cooling system with a user-adjustable thermostat with a temperature range of 32–140°F.

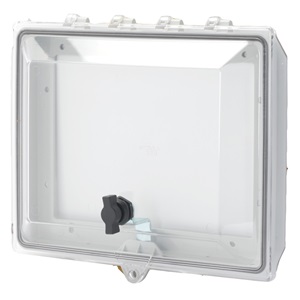

AutomationDirect’s Hubbell Wiegmann NEMA 3R enclosures are typically used in outdoor applications for wiring and junction boxes. They provide protection against rain, sleet, snow and external ice formation and dripping water when used indoors. Some models have hasps for padlocking. New models include galvanized steel units and larger sizes with hinge covers.


Allied Moulded Products Inc.’s wall-mount enclosure assembly has nine push-button holes in the cover and a rigid design with back panel inserts plus stainless-steel mounting brackets and a gasket system encased in a continuous channel on the cover. It is designed to enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications, especially well-suited for extreme temperature and corrosive environments.
